X RANGE
HIGH VOLUME LOW SPEED HVLS FANS
THE GENTLE GIANT OF AIR MOVEMENT
Gorilla X Range - Cropped
The HVLS High Volume, Low Speed fans are designed to eliminate the build-up of hot stagnant air by maintaining constant air movement.
ENGINEERED TOUGH
Industrial grade components of the highest quality. Anodised extruded blades provide strength while keeping the unit lightweight for increased efficiency.
SILENT OPERATION
The Gorilla HVLS uses a gearless drive system, which makes for incredibly quiet running.
ULTRA ENERGY EFFICIENT
Made and tested in our European labs, our Gorilla X HVLS Fans are powered with the latest EC brushless motor technology. This enables the unit to equally destratify and distribute air in the most efficient and cost effective manner.
SEVEN MODELS AVAILABLE
With models available in 3, 4, 5, 6 and 7m diameters Gorilla X HVLS is adaptable enough for all applications from sports centres to manufacturing facilities.
TWO TIP COLOURS
Coordinate your HVLS fan to suit your space. The hub covers and impeller wingtips are available in your choice of green or black.
SAFELY DESTRATIFY AND COOL
Ventilation built to withstand the toughest environments.

Gorilla HVLS 5 Year Warranty

DESTRATIFICATION
& COMFORT
The Gorilla X range can save energy costs and increase productivity while respecting the environment!
The X range of high velocity, low speed (HVLS) fans generate a gentle, slow moving airstream that covers a large area even when they are installed in a very high ceiling. They help create a more comfortable indoor space for building occupants while lowering a building’s running costs and reducing its carbon footprint.
The Gorilla X range can be controlled with the easy to use Aviator controller or a Building Management System.
SUMMER COMFORT
In summer, an efficient and continuous air circulation provided by a HVLS fan, creates a natural evaporative cooling effect for occupants. It also eliminates hot and cool spots in the building by improving the internal environment, making the air-conditioning system work less and preventing large internal atmospheric losses each time doors and windows are opened.

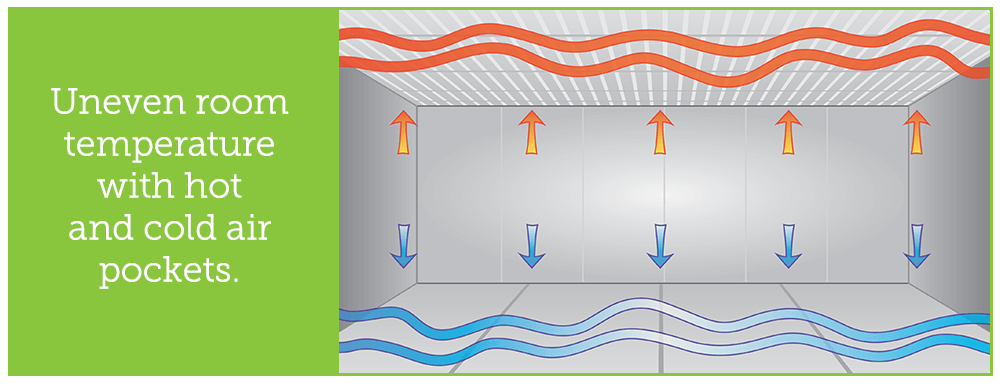

Without HVLS

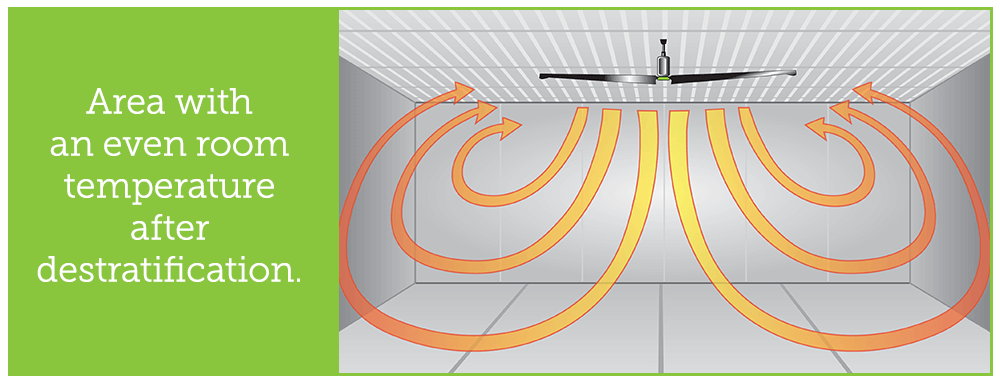

With HVLS
AREA OF IMPACT
Select the right fan for the application. The larger the fan, the larger the area of impact. There are seven sized models to choose from.
With models available in 3, 4, 5, 6 and 7m diameters Gorilla X Range HVLS is adaptable enough for all your applications from sports centres to manufacturing facilities.

APPLICATIONS
Agricultural / Greenhouses
Warehouse / Industry
Manufacturing facilities
Showrooms
Shopping malls
Sports centres
BENEFITS
Improve thermal comfort
Low noise level
Constant fresh air
Increase occupant productivity
Lowers Ammonia level
Stops animals crowding closely together
SAVINGS
Lowers energy consumption
Reduces a facility’s Carbon Footprint
Fast return on investment
Lowers installation costs
Simplifies infrastructure equipment (fewer ducts and diffusers)
Maximises the efficiency of your installed HVAC systems
TOUCH SCREEN MULTI-FUNCTION CONTROLLER
The Aviator touchscreen controller is designed to manage a mini-network of Gorilla X high volume, low speed EC fans. This multi-fan control system features a wall mounted 9cm LCD touchscreen display that communicates to each fan individually from a central location. It can alter the fan speed in real time by simply changing up or down the percentage value on the display. Each fan can be individually turned on or off by touching the relevant power button icon.
FAN SELECTION CONTROL
The Aviator can control up to 4 Gorilla X HVLS fans from one convenient digital controller.
HVLS COMMUNICATION
The communication between the Gorilla X HVLS fans is established by ‘daisy chaining’ the fans together via a discreet RS485 cable.
RUN-ON TIMER
Featuring an adjustable run-on timer for applications that require the fans to continue running for a pre-set period. Particularly suitable for sports centres and working environments where the HVLS fans are required to operate to a set time.
EASY TO USE
The Aviator controller is incredibly user friendly. The easy to read, touchscreen display allows you to operate individual fans with just a tap of your finger.
INSTALLATION
The distance between the lowest part of the Gorilla X HVLS fan and the floor must be 2.7m. If necessary, a different length downrod (400m or 1500m) can be supplied on request.
The installation of the Gorilla X HVLS fans is quick and simple so you can easily fit out your entire facility. To maintain the efficiency of the fan and comfort of your workers, the fan should not be placed near a supply air outlet or exhausting inlet of other HVAC equipment.
FEATURES

  • High efficiency EC brushless motor
  • Embedded electronic system
  • Gearless for silent operation
  • 400Vac/3ph/50-60Hz, IP65 Suitable for S1 continuous service
  • Strong main security wire
  • Additional stabilising wires
  • Hub safety ring
  • Heavy duty construction
  • Robust anodised extruded blades
  • Special design airfoil
  • Plastic hub cover for better aesthetics and dust protection
  • Aerodynamically shaped blade terminal for better performance and noise reduction

Gorilla HVLS Dimensions

MODELUMHVLS30HVLS40HVLS40SHVLS50HVLS60HVLS60SHVLS70
ØAm3050405040505050605060507050
Bº5555555
Cmm350450450550550550650
Dmm1250125012701270127012901290
Emm800800800800800800800
Fmm2700270027002700270027002700

Gorilla HVLS Dimensions

MODELUMHVLS30HVLS40HVLS40SHVLS50HVLS60HVLS60SHVLS70
Number of blades-5555555
Diameterm3.054.054.055.056.056.057.05
Max rotation speedrpm140809870505840
Max absorbed powerkW0.820.580.770.900.770.960.63
Max currentA2.01.51.852.21.92.181.53
Weightkg8895102108120133140
Max thrust (1)N686279100146175133
Max airflow
AMCA 230-99
cfm609807731187267122439177216193733197103
m³/h103605131352148266208025301092329152334878
SPI (1)28.515.918.715.69.210.56.8
Max airflow
AMCA 230-15
cfm43119546676170786577125311137195139373
m³/h7326092880104840147096212904233094236795
SPI (1)40.322.526.422.013.014.89.6
Affected diameter (2)m15182024303235
Operating temp°C-10/+50-10/+50-10/+50-10/+50-10/+50-10/+50-10/+50

Gorilla HVLS Dimensions

ABSORBED POWERUMHVLS30HVLS40HVLS40SHVLS50HVLS60HVLS60SHVLS70
10rpmW52525055585861
20rpmW556056739790120
30rpmW618077114191170280
40rpmW73114107204410329628
50rpmW90172166348770595-
60rpmW113262243550-960 (4)-
70rpmW148388350900---
80rpmW190580482----
90rpmW250-669----
100rpmW318-770 (3)----
110rpmW405------
120rpmW520------
130rpmW648------
140rpmW820------

Gorilla HVLS Fans

X RANGE HVLS

Download the Gorilla X Range PDF brochure
