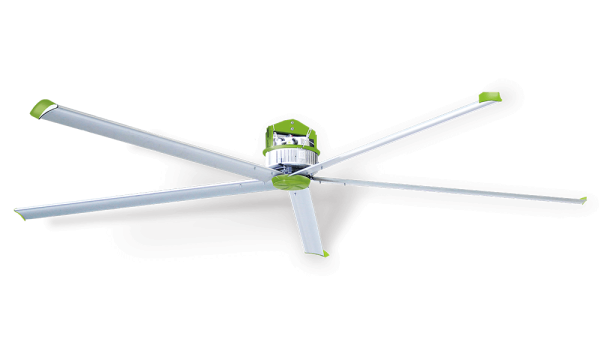

GORILLA X HIGH VOLUME LOW SPEED FAN

Designed in Italy and built to the highest standards, our HVLS fan can save energy costs and increase productivity. Designed to eliminate the build up of hot stagnate air by maintaining constant air movement. It creates a more comfortable indoor space for building occupants while lowering a building’s running costs and carbon footprint.

The Gorilla X range can be controlled with our easy to use touchscreen controller. The range includes multiple sized fans so that it can be used in a wide range of applications.


Simple to use touchscreen
controller available,
Click here to find out more!

MODELUMHVLS30HVLS40HVLS40SHVLS50HVLS60HVLS60SHVLS70
ØAm3050405040505050605060507050
Bº5555555
Cmm350450450550550550650
Dmm1250125012701270127012901290
Emm800800800800800800800
Fmm2700270027002700270027002700

A – Fan diameter
B – Max. ceiling slope
C – Min. safety distance from side obstruction

D – Fan height with standard downrod
E – Standard downrod length
F – Min. fan installation height

All dimensions in mm.

AREA OF IMPACT
Select the right fan for the application. The larger the fan, the larger the area of impact.

MODELUMHVLS30HVLS40HVLS40SHVLS50HVLS60HVLS60SHVLS70
Number of blades-5555555
Diameterm3.054.054.055.056.056.057.05
Max rotation speedrpm140809870505840
Max absorbed powerkW0.820.580.770.900.770.960.63
Max currentA2.01.51.852.21.92.181.53
Weightkg8895102108120133140
Max thrust (1)N686279100146175133
Max airflow
AMCA 230-99		cfm609807731187267122439177216193733197103
m³/h103605131352148266208025301092329152334878
SPI (1)28.515.918.715.69.210.56.8
Max airflow
AMCA 230-15		cfm43119546676170786577125311137195139373
m³/h7326092880104840147096212904233094236795
SPI (1)40.322.526.422.013.014.89.6
Affected diameter (2)m15182024303235
Operating temp°C-10/+50-10/+50-10/+50-10/+50-10/+50-10/+50-10/+50
ABSORBED POWER
10rpmW52525055585861
20rpmW556056739790120
30rpmW618077114191170280
40rpmW73114107204410329628
50rpmW90172166348770595-
60rpmW113262243550-960 (4)-
70rpmW148388350900---
80rpmW190580482----
90rpmW250-669----
100rpmW318-770 (3)----
110rpmW405------
120rpmW520------
130rpmW648------
140rpmW820------

(1) max. absorbed power/max. airflow
(2) min. average air speed 0.8 m/s with testing layout in conformity with AMCA 230
(3) Absorbed power at 95 rpm
(4) Absorbed power at 58 rpm

Price and lead times available on request for the HVLS40S, HVLS60S & HVLS70.
