QIN Series

INTERMITTENT AXIAL FAN

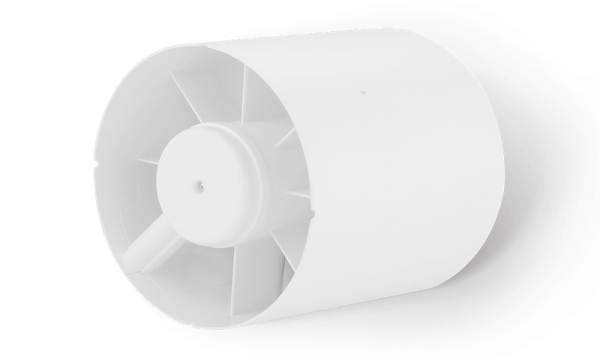

QIN Intermittent Axial Fan

Slim, simple to set up and operate the QIN Series is designed to be used in ducted ventilation solutions with limited space. Suitable to extract stale air directly outside or through short length ducting. Available in 3 sizes to suit 100, 125 and 150mm duct.


MODELQIN100QIN125QIN150
Airflow m³/h*84163312
Speed rpm247023352220
Static Pressure Pa244357
Power W81424
dB(A) @3m343945
MarkingСЄСЄСЄ
*Max airflow without duct and fittings.

MODEL SIZEQIN100QIN125QIN150
ØA99119140
B8090100
All dimensions in mm.
