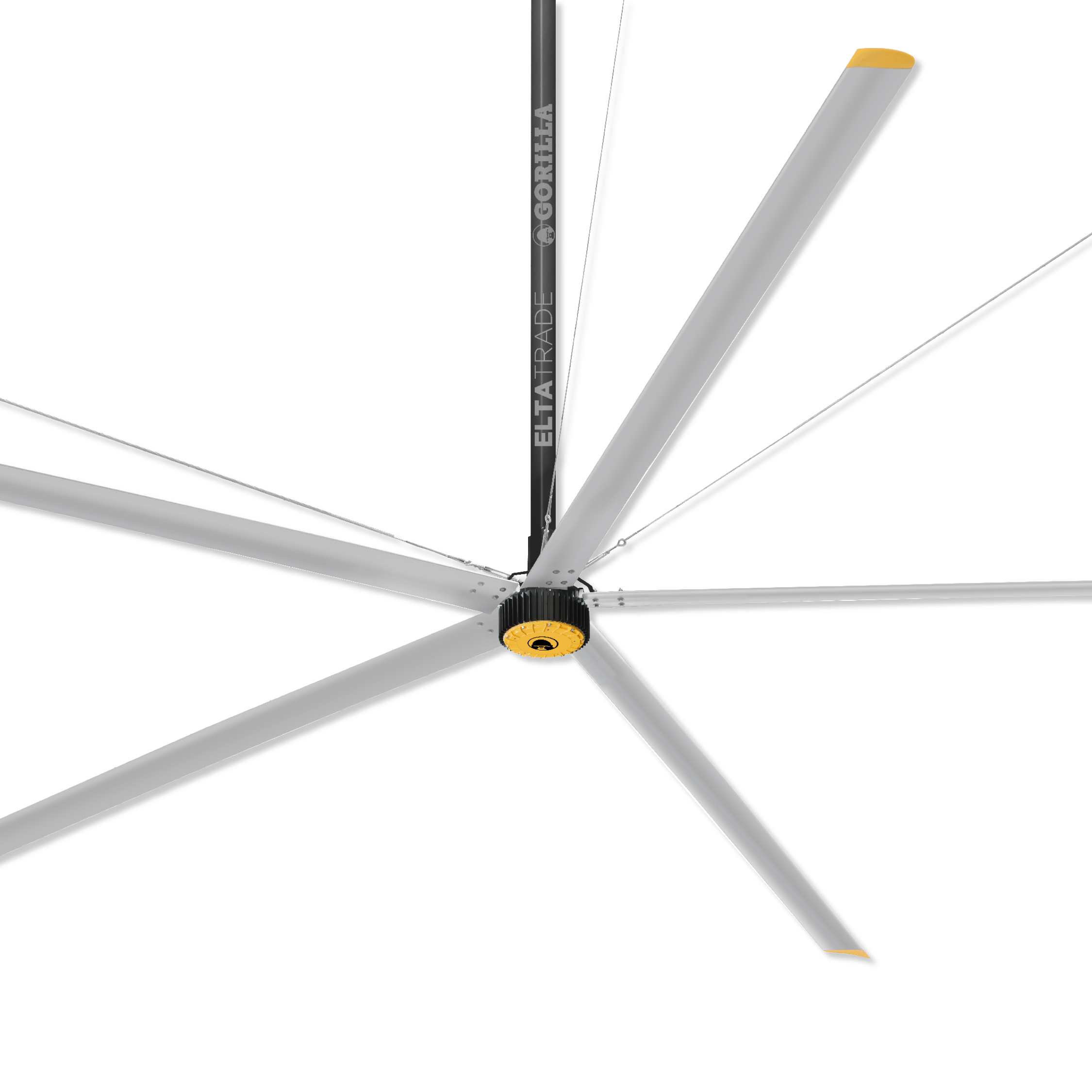

The Gorilla High Volume Low Speed (HVLS) fans are designed to move large amounts of air at low rotational speeds. This provides a consistent and energy-efficient airflow solution suitable for large spaces such as warehouses, gyms, factories or agricultural facility.
Features
Applications
Suitable for factories, gyms, mosques, shopping malls, car showrooms, outdoor places, canteens, workshops and atriums.
Large Diameter Blades & Coverage
Ideal for both industrial and commercial spaces, our fans range from 4.0 to 7.3 meters in diameter.
Safety-First Design
Multiple safety systems including reinforced blade connection, blade retention systems and anti-fall bracket.
Energy-Saving Performance
Reduces reliance on other HVAC systems by creating an even temperature distribution. This makes them a cost-effective solution for maintaining a cool environment during hot months.
High Airflow Efficiency
Blades and wingtips are meticulously engineered for maximum efficiency and made from high grade polymer composite materials.
Industrial Grade Core Motor Design
Aluminium structure for motor core heat dissipation system, maintains low temperature rise and long service life.
Direct Drive Permanent Magnet Synchronous Motor (PMSM)
High efficiency and maintenance-free compared to traditional geared motors. Offer a high toque-to-weight ratio, making them suitable for applications where space and weight are critical.

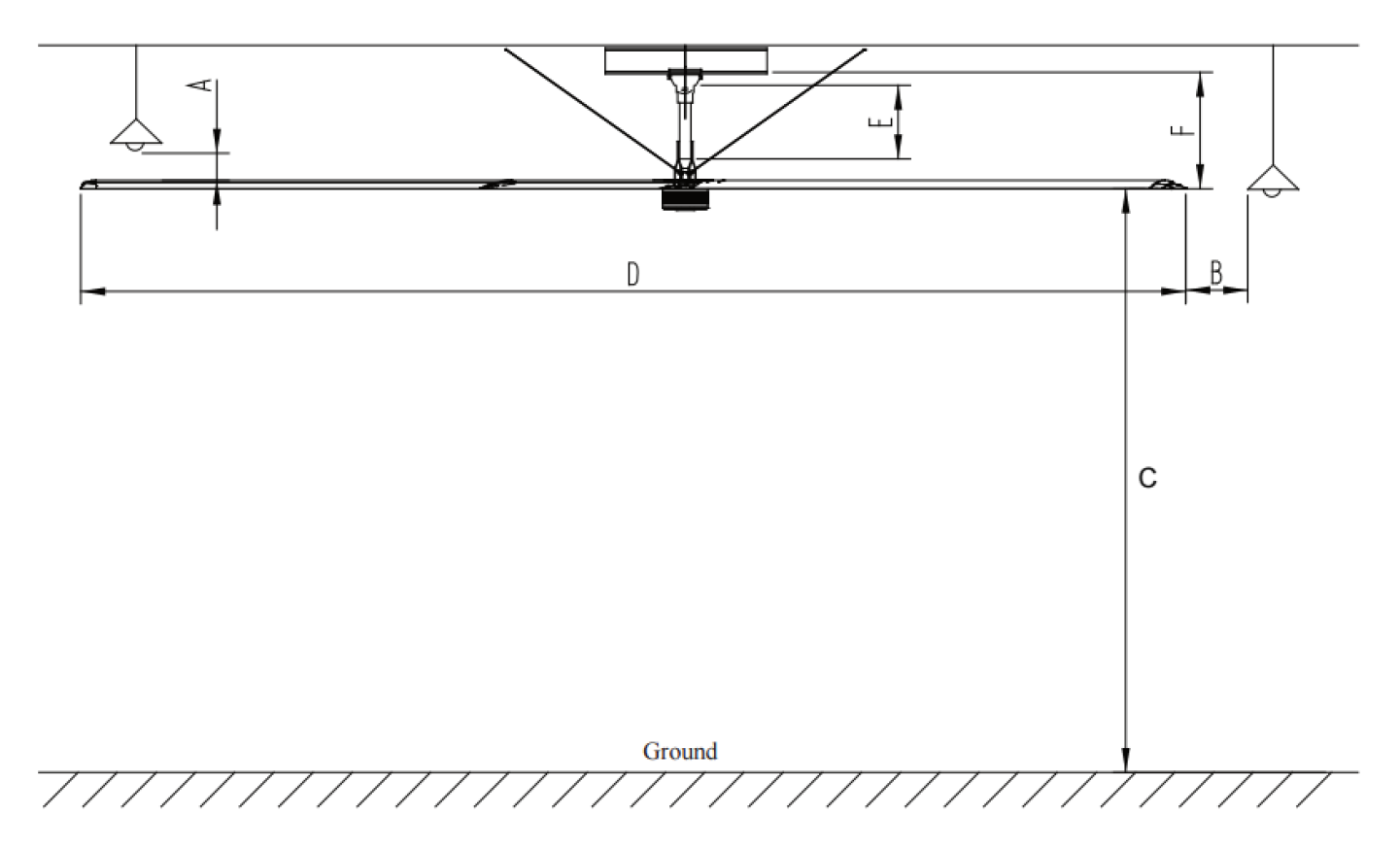

Dimensions & Clearance Data
| MODEL | A - Min vertical obstacle distance | B - Min horizontal obstacle distance | C - Min fan installation height | D - Fan diameter | E - Standard downrod length | F - Fan height with standard downrod |
|---|---|---|---|---|---|---|
| GOR-DCI-40M | 400 | 400 | 3500 | 4000 | 3000 | 3350 |
| GOR-DCI-43M | 400 | 400 | 3500 | 4300 | 3000 | 3350 |
| GOR-DCI-49M | 400 | 400 | 3500 | 4900 | 3000 | 3350 |
| GOR-DCI-55M | 400 | 400 | 4000 | 5500 | 3000 | 3350 |
| GOR-DCI-65M | 400 | 400 | 4000 | 6500 | 3000 | 3350 |
| GOR-DCI-73M | 400 | 400 | 4500 | 7300 | 3000 | 3350 |
All dimensions in mm.
Specifications
| MODEL | GOR-DCI-40M | GOR-DCI-43M | GOR-DCI-49M | GOR-DCI-55M | GOR-DCI-65M | GOR-DCI-73M |
|---|---|---|---|---|---|---|
| Fan Diameter (m) | 4.0 | 4.3 | 4.9 | 5.5 | 6.5 | 7.3 |
| Input Voltage (V/Hz) | 240/50 | 240/50 | 240/50 | 240/50 | 240/50 | 240/50 |
| Current (A) | 1.3 | 1.5 | 2.3 | 2.9 | 4.2 | 5.0 |
| Power (kW) | 0.42 | 0.48 | 0.75 | 0.85 | 1.1 | 1.25 |
| Air Volume (m3/min) | 7500 | 8500 | 10500 | 12000 | 14900 | 17800 |
| Speed (RPM) | 95 | 90 | 85 | 80 | 66 | 56 |
| Coverage (m2) | 450 | 610 | 700 | 800 | 1100 | 1375 |
| Optimum Coverage (m2) | 220 | 250 | 360 | 450 | 650 | 840 |
| Noise (dBA) | 39 | 39 | 39 | 39 | 39 | 39 |
| Weight (kg) | 63.2 | 67.8 | 71.1 | 73.5 | 81.1 | 85 |
See below download for more performance data.
