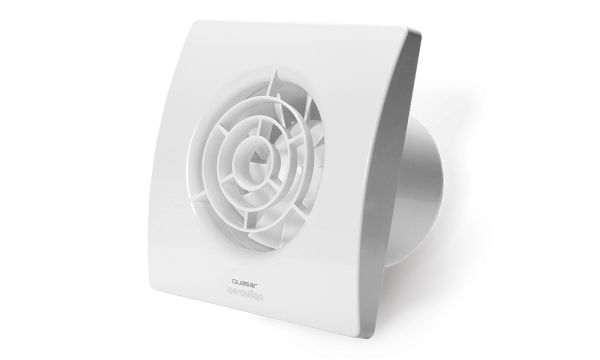

MIXED FLOW FAN
Modern ventilation on a whole new level. 100mm ultra quiet extract fan designed and developed for over 2 years in one of Europe’s most sophisticated Air Science labs. It features Apex Air Science technology.
| MODEL NO. | QUASAR-2SBB | QUASAR-N | |
|---|---|---|---|
| HIGH | LOW | - | |
| Airflow m³/h* | 105 | 70 | 95 |
| Speed rpm | 2300 | 1600 | 2150 |
| Static Pressure Pa | 53 | 22 | 47 |
| Power W | 8 | 5 | 8 |
| dB(A) @3m | 26 | 22 | 25 |
| Warranty | 5 years | 2 Years | |
| Marking | СЄ | СЄ | |
| MODEL NO. | QUASAR-2SBB | QUASAR-N |
|---|---|---|
| A | 164 | 164 |
| BØ | 99 | 99 |
| C | 84 | 84 |
| D | 27 | 27 |
Modern ventilation on a whole new level, the Quasar fan is truly an ultra quiet extract fan that exceeds all others. Designed and developed in one of Europe’s most sophisticated Air Science laboratories.
Long life motor
Engineered exoskeleton
Low energy consumption
Engineered exoskeleton
Low energy consumption
Aerodynamic design
Built to last
Guide vanes as standard
Built to last
Guide vanes as standard
QUASAR 2VBB
QUASAR N
