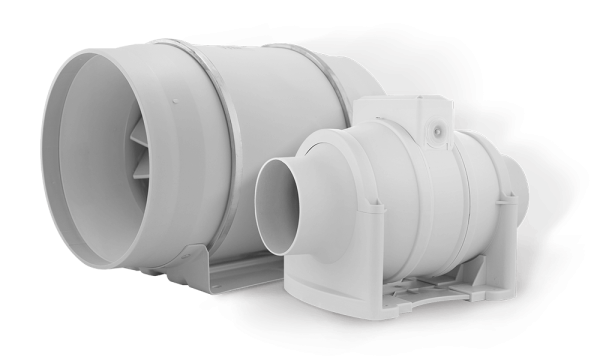

IMF-E IN-LINE MIXED FLOW FAN
Our powerful and compact in-line mixed flow fan will provide excellent airflow for your application. Designed to be used with rigid or flexible duct. Available in 3 sizes to suit 100, 150, and 200 duct.
| MODEL NO. | IMF-100E | IMF-150E | IMF-200E | ||||||
|---|---|---|---|---|---|---|---|---|---|
| HIGH | MEDIUM | LOW | HIGH | MEDIUM | LOW | HIGH | MEDIUM | LOW | |
| Airflow m³/h* | 270 | 194 | 176 | 475 | 352 | 313 | 856 | 741 | 648 |
| Speed rpm | 2350 | 1750 | 1500 | 2250 | 1700 | 1450 | 2250 | 1700 | 1450 |
| Power W | 33 | 33 | 33 | 55 | 55 | 55 | 135 | 135 | 135 |
| dB(A) @3m | 42 | 38 | 37 | 50 | 44 | 40 | 56 | 53 | 51 |
| Marking | СЄ | СЄ | СЄ | ||||||
IMF-100E, IMF-150E, IMF-200E
| SIZE | A | BØ | C | D | E | F |
|---|---|---|---|---|---|---|
| IMF-100E | 258 | 100 | 216 | 178 | 80 | 60 |
| IMF-150E | 304 | 150 | 248 | 204 | 93 | 60 |
| IMF-200E | 300 | 200 | 275 | 210 | 114 | 85 |
IMF100
IMF150
IMF200
| Features | |
|---|---|
| Colour | |
| Warranty | |
| Product Type | |
| Position | |
| Location | Commercial, Residential, Bathroom, Bedroom, Kitchen, Living Room |
